Product Description

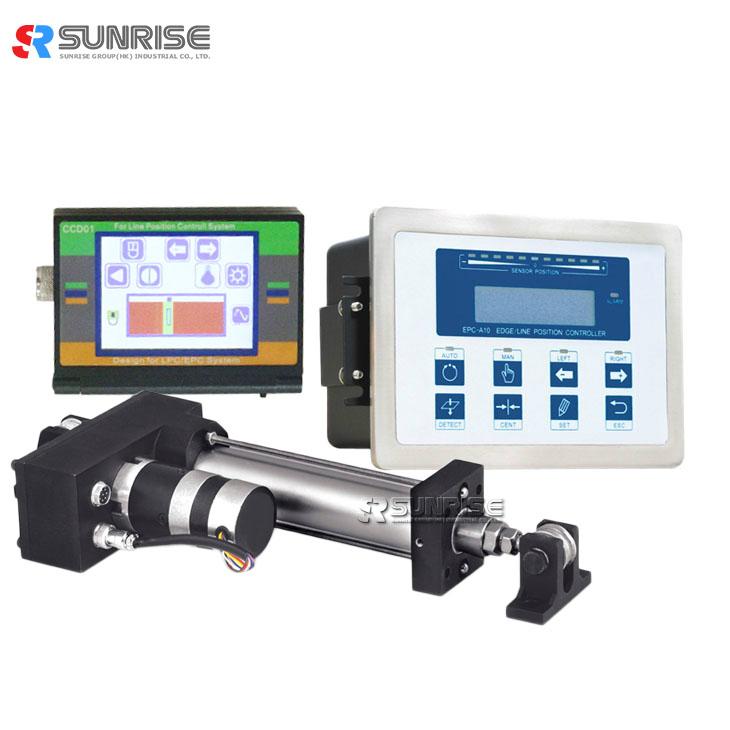

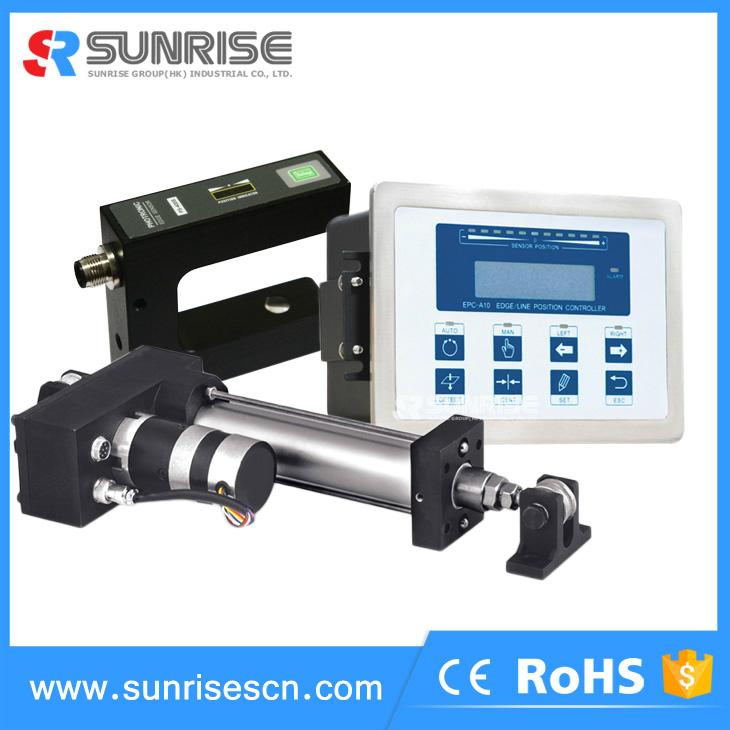

2015 Most Populor Hot Selling Web Guiding Control system with Electric eyes



Web Guiding Controlr feature:



Servo Edge Postion Controller EPC-A10/LPC-A12 adopts the high-speed 32-bit CPU drive DC servo driver and no-overshot integral variable PI adjustable algorithm. It is of high deviation rectification and fast reaction. In addition, it supports three operation modes: the edge-following, line-following and center-alignment mode.



Web Guiding Contror function:



1. support three operation modes: edge-following, line-following and center-alignment.

2. support photoelectric sensor, ultrasonic transducer and CCD Sensor

3. detect sensor’s parameters intelligently, no need to correct the sensor under most circumstances

4. automatic travel measurement, no need to limit the switch mechanically.

5. no overshot integral variable PI algorithm, high accuracy, fast reaction and less error.

6. 0.5msec super-speed of responding

7. analog quantity transducer signal 12bit AD sampling, 700,000 times of sampling per second

8. adopt FIR digital filter and return difference filter, stronger anti-interference capability and more stable signal

9. DC servo motor to push the ball screw

10. power-down memory of all the parameters at any states in the system

11.store 10 groups of parameters from different material, convenient and efficient switchover of material

12. Simplified Chinese/ Traditional Chinese /English for menu operation

13. humanized operation, fast, simple and convenient

14.support Modbus and PLC/Human-computer networking control



Web Guiding Controlr data:

Control Method	DC Servo Driver
Power	DC 24V /5A
Control Input	DC 0~5A
Control output	24V, PWM
Response time	0.5 mS
Environment temperature	-10~60°C, below RH90%
Weight	1.2 kg
Installation : Web guide Control system:



Ultrasonic sensor data:

Signal output	0~5V (two way switch signal)
Power input	DC 12V
Detecting range	6mm (±3.0mm)
Detecting precision	±0.05mm
Tracking method	edge tracking
Housing material	Aluminum
Protection level	IP54



Servo Motor Linear Driver Parameter:

Model	Travel	Thrust	Pushing loading	Max. driving speed
PD-104L80	80mm	100kg	1000kg	40mm/s
PD-204L150	150mm	200kg	2000kg	40mm/s
PD-204L200	200mm	200kg	2000kg	40mm/s
PD-403L150	150mm	400kg	4000kg	30mm/s
PD-403L200	200mm	400kg	4000kg	30mm/s
PD-803L200	2000mm	800kg	8000kg	30mm/s





* Printing systems: conveyors and in-feeders

*Wood-working systems: saws, wood-working machine, laminators
* Office equipment: electronic copy machines, calculators, fax machines, coin counters, printers
* Testing systems: lab machines, durability testers, measuring systems
* Food processing systems: meat cutting machines, cookie making machines, canning machines, noodle making machines
* Others: speed reducers, electroplating machinery, physics and chemistry machines, paper-making machines, pulp processing machines.





Still frustrated about your powder brake, powder clutch, air shaft or safety chucks, tension controllers? And looking for available and enduring ones with warranty?

You’ve come to the right place!

Established in 2003 and located in Dongguan city, SUNRISE GROUP INDUSTRIAL CO., LTD is a professional manufacturer and trader of powder clutches, powder brakes, electromagnetic clutches, electromagnetic brakes, air clutches, air brakes, air shafts, safety chucks, rollers and tension controllers. You name it, we specialize in it!



Due to the positive image and quality products, SUNRISE GROUP INDUSTRIAL CO., LTD has gained a large share of the market, along with the products sold in over 30 countries and regions, including US, Mexico, Colombia, German, UK, Australia, Italy, Spain, Portugal, Russia, Korea, Malaysia and eastern European countries etc...









1.    When can I get the quotation?



We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.



2.    How should I place the order?



Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks. For air shaft and roller, please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.



3.    What’s your MOQ basis?



Normally, we don’t have MOQ request, except the rollers.



4.    What about the lead time for production?



Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller, load cell and edge position controller which is about 3-5 days. For safety chucks, air shaft and roller which need about 15-30days



5.    What is the term of delivery?



We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.



Payment Terms︰ TT

Product Image
